2D Slab Classification Workflow

A comprehensive guide to running automated 2D class averaging on extracted slabs from cryo-ET tomograms.

Overview

The 2D slab classification workflow in py2rely enables high-throughput 2D class averaging on extracted "slabs" (thin slices) from tomograms. This workflow is particularly useful for:

  • 🔍 Rapid particle validation: Quickly assess particle quality
  • 🎯 Template generation: Create 2D templates for template matching
  • 🧹 Particle cleaning: Remove false positives and low-quality picks

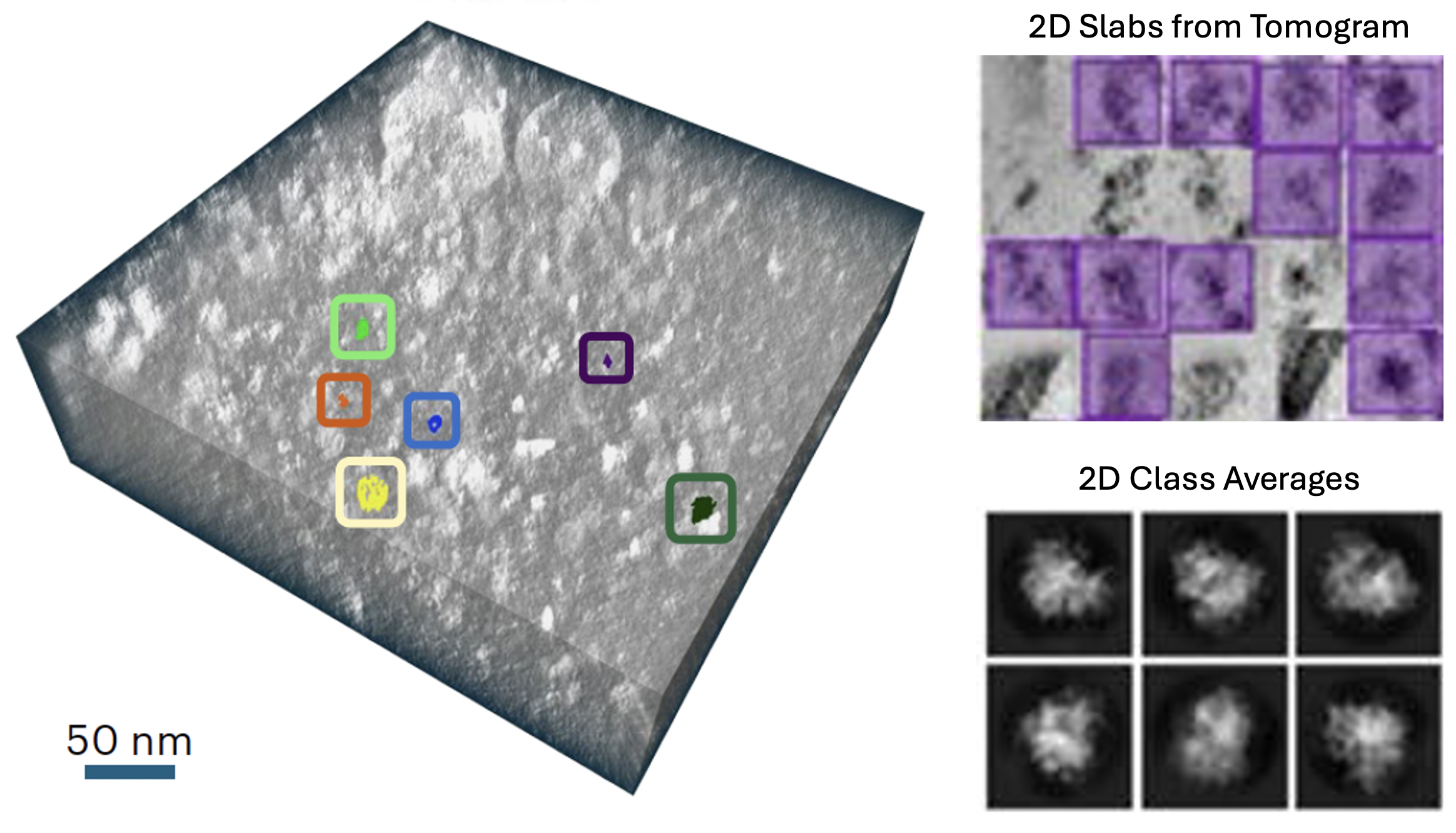

2Dslabpick

The complete workflow consists of three main steps:

  1. Slab Extraction - Extract thin slabs from tomograms at particle locations
  2. 2D Classification - Run Relion Class2D on extracted slabs
  3. Visualization & Selection - View and extract class averages

Prerequisites

Before starting, ensure you have:

  • ✅ Installed gradio or PyQt5 for visualization (see Installation)
  • ✅ Prepared particle coordinates and tomogram data
  • ✅ Access to SLURM cluster (recommended for large datasets)

Do I need visualization tools?

Yes! The 2D slab workflow requires either Gradio or PyQt5 for viewing and selecting class averages. See the Installation Guide for setup instructions.

Step 1: 🔪 Extract Slabs

Project slabs from tomograms at particle coordinates using slabpick. py2rely can either generate the relevant CLI inputs to run the job through a SLURM scheduler, or users can use the corresponding slabpick commands:

The slabpick commands to generate slabs from tomograms is shown below, we will be calling both: 1. make_minislabs 2. normalize_stack For generating the slabs and normalizng the contrast for Relion.

make_minislabs \
    --in_coords=/path/to/copick/config.json \
    --extract_shape 500 500 400 \
    --coords_scale 1.0 --col_name rlnMicrographName \
    --voxel_spacing 5.0 --tomo_type denoised \
    --user_id octopi --particle_name ribosome

normalize_stack \
    --in_stack=/path/to/output/particles.mrcs \
    --out_stack=/path/to/output/particles_relion.mrcs \
    --apix 1.54

The command below will create and submit a SLURM job to extract slabs according to the specified parameters:

# Create the Slurm Submission script for minislab generation
py2rely-slurm slab slabpick \
    --in-coords /path/to/copick/config.json \
    --pixel-size 1.54 \
    --extract-shape 500,500,400 \
    --tomo-type denoised --voxel-spacing 10.0 \
    --particle-name ribosome --user-id octopi

# Run Minislab Extraction
sbatch slabpick.sh

📋py2rely-slurm slab slabpick Parameters

Parameter Description Example
--in-coords * Input coordinates file (particles picks, e.g. STAR format). (Required) input/full_picks.star
--in-vols Input volumes file (list of tomograms, e.g. STAR file). input/tomograms.star
--out-dir * Directory to save extracted slabs. (Required) slabs/
--extract-shape * Slab dimensions (X,Y,Z) in pixels (comma-separated). (Required, default: 500,500,400) "500,500,400"
--coords-scale * Scale factor to convert input coordinates to Angstroms. (Required)
(Use 1.0 if coordinates are already in Å or from CoPick output.)		 1.0
--voxel-spacing Voxel size of the tomograms in Angstroms (Å). (Default: 5) 10.0
--pixel-size Pixel size of the original tilt series in Å. (Default: 1.54) 1.54
--tomo-type Tomogram file type/format (needed if using a CoPick project context). mrc
--user-id User ID for CoPick database query (if applicable). $USER (current user)
--particle-name Particle name for CoPick query (if applicable). mix
--session-id Session ID for CoPick query (if applicable). 99
--help Show help message and exit. (n/a)

Parameters marked with * are required. Defaults are used if optional parameters are not provided.

Slab Size Guidelines

  • X, Y: Should be 2-3× the particle diameter
  • Z: Typically 300-400 pixels (thinner = better alignment, but less context)

Too Large vs Too Small

  • Too large: Slower processing, more noise
  • Too small: May cut off particle features
  • Just right: 2-3× particle diameter in X/Y

Step 2: 📊 Run Class2D

Classify the extracted slabs using Relion Class2D.

py2rely slab class2d \
    --particles slabs/particles.star \
    --nr-classes 50 --nr-iter 25 \
    --particle-diameter 300

For large datasets or GPU clusters:

# Generate the Shell Submission Script for 2D Classificaiton
py2rely-slurm slab class2d \
    --particle-diameter 300 \
    --num-classes 50 \

# Run Class2D
sbatch class2d.sh

Bootstrap Trials

The --bootstrap-ntrials option runs multiple independent classifications for robust class ranking (see Step 3).

📋 class2d Parameters
Parameter Description Recommended
--tau-fudge Regularization parameter 2.0-4.0
--nr-classes Number of classes 20-100
--class-algorithm Algorithm (2DEM or VDAM) 2DEM
--nr-iter Number of iterations 20-30
--do-ctf-correction Apply CTF correction yes
--particle-diameter Particle diameter (Å) Match your particle
--dont-skip-align Perform alignment yes for better results
--use-gpu Use GPU acceleration yes (if available)

Classification Output

The classification job creates:

Class2D/
└── job001/
    ├── run_it001_data.star
    ├── run_it002_data.star
    ├── ...
    ├── run_it025_data.star
    └── run_it025_classes.mrcs  # Final class averages

Step 3: 🎨 Extract Classes

After classification, visualize class averages and extract the best classes. On both interfaces, users and select classes corresponding to the desired processed protein.

Launch an interactive web interface:

py2rely slab extract

Hosting URL

This command will print a resulting message similar to as shown below:

* Running on local URL:  http://127.0.0.1:7860
* Running on public URL: https://09ef7b0f6f19b227ff.gradio.live
The second link for the public URL can be ran on any computer (including outside the HPC environment).

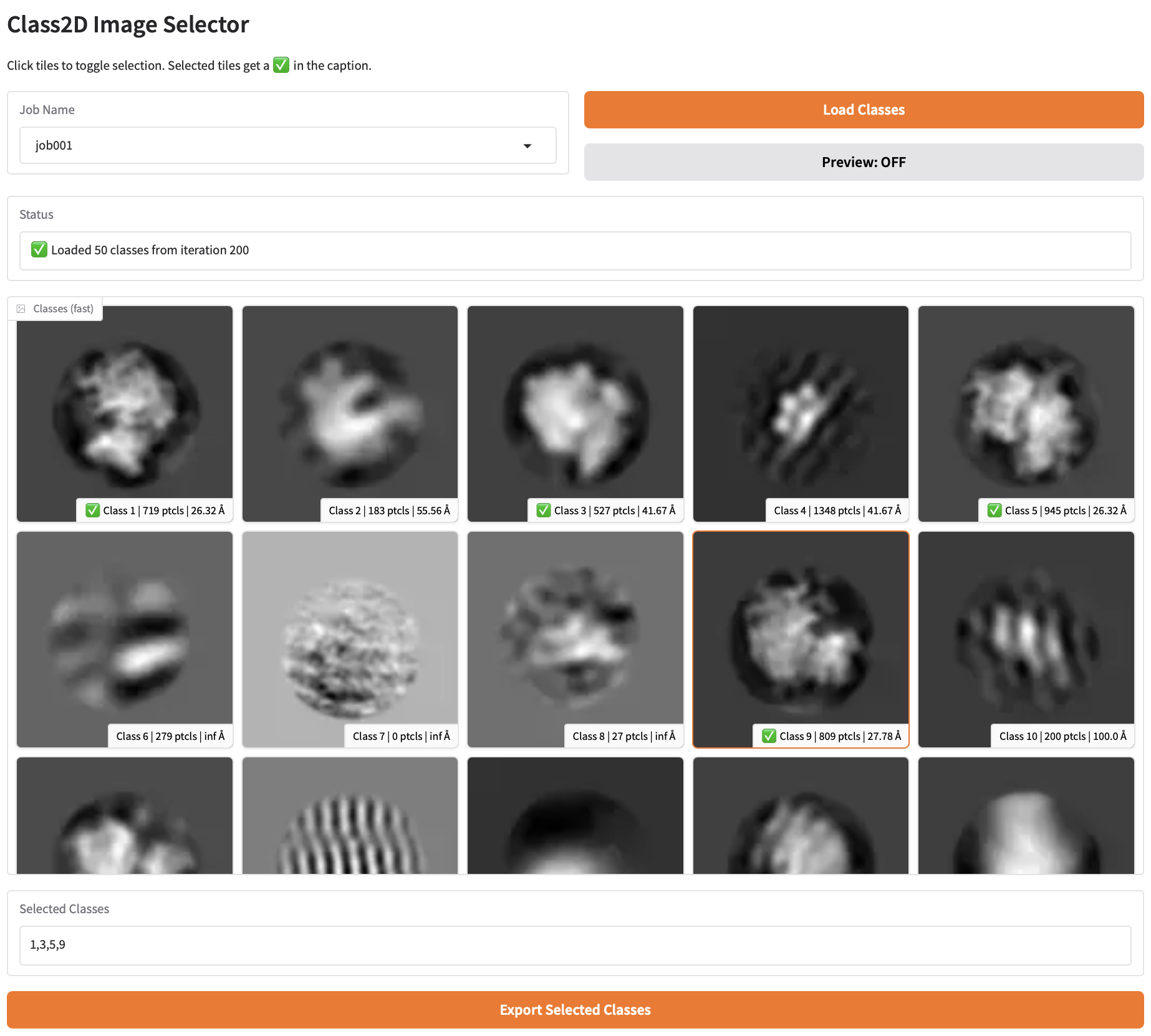

2Dslabpick

For a native desktop experience:

py2rely slab extract-desktop \
    -j job001

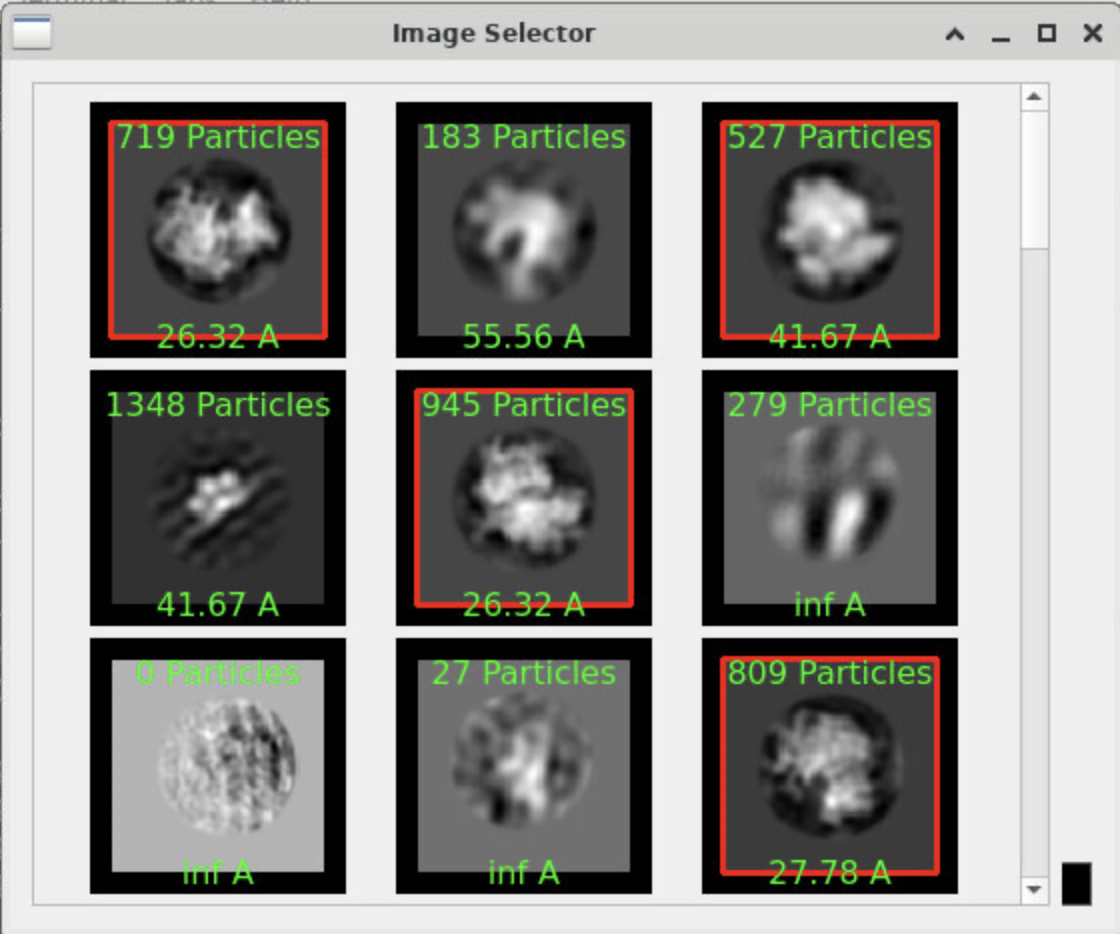

This will populate a PyQT application with an example is shown below...

2Dslabpick

Features

  • 📸 Browse all class averages
  • 🎯 Select classes by clicking
  • 💾 Export selected particles to a new STAR file
  • 📊 View class statistics and scores
  • Interactive class browser with thumbnails
  • Real-time filtering and search
  • Batch selection tools

Create a static gallery of class averages:

py2rely slab summary \
    --particles slabs/particles.star \
    --class-job job001

Generates a PDF or image file showing all class averages in a grid layout.

Iterative Refinement

Improve classification by iterating:

  1. Run initial classification
  2. Extract good classes
  3. Re-classify selected particles with tighter parameters
  4. Repeat until convergence
# First pass: broad classification
py2rely slab class2d \
    --particles slabs/particles.star \
    --nr-classes 100 \
    --nr-iter 20

# Extract good classes
py2rely slab extract
# Export to: slabs/selected_particles.star

# Second pass: refined classification
py2rely slab class2d \
    --particles slabs/selected_particles.star \
    --nr-classes 20 \
    --nr-iter 30 \
    --highres-limit 8.0

Step 4: 📤 Exporting Back to Copick

After selecting good classes, you may want to write the curated particle set back into CoPick for reuse in downstream workflow: (e.g. 3D sub-tomogram averaging or further annotation).

This is done using rln_map_particles, which maps particles selected in RELION back to their original runs.

rln_map_particles \
    --rln_file Select/job002/particles.star \
    --map_file stack/particle_map.csv \
    --particle_name ribosome --user_id octopi \
    --user_id_out slabpick --session_id_out 1  session_id 1

📋 rln_map_particles Parameters
Parameter Description
--rln_file RELION STAR file containing selected or rejected particles
--map_file Particle-to-slab bookkeeping file mapping slabs back to tomograms
--coords_file Original CoPick JSON file used to generate the slabs
--particle_name Input particle name used in the original CoPick query
--session_id Input CoPick session ID where the original coordinates were queried
--user_id Input CoPick user ID where the original coordinates were queried
--particle_name_out Particle name for the exported (curated) picks
--session_id_out CoPick session ID to write the curated particles to
--user_id_out CoPick user ID to write the curated particles under
--rejected_set Export rejected particles instead of selected ones

Example: Complete Workflow

# 1. Extract slabs (SLURM)
py2rely-slurm slab slabpick \
    --in-coords input/full_picks.star \
    --in-vols input/tomograms.star \
    --out-dir slabs/ \
    --extract-shape "128,128,32" \
    --voxel-spacing 10.0 \
    --pixel-size 1.54

# Run Minislab Extraction
sbatch slabpick.sh

# 2. Run classification
# Generate the Shell Submission Script for 2D Classificaiton
py2rely-slurm slab class2d \
    --particle-diameter 300 \
    --num-classes 50 \

# Run Class2D
sbatch class2d.sh

# 3. Visualize and extract
py2rely slab extract

# 4. Export selected particles
# TODO...
