Inference Guide

This guide covers how to apply your trained Octopi models to generate predictions and extract particle coordinates from new tomograms. Inference is a two-step process: segmentation followed by localization.

Overview

Octopi inference follows a systematic two-step approach:

  1. Segmentation - Apply trained model to generate 3D probability masks with test-time augmentation (TTA).
  2. Localization - Convert probability masks into 3D coordinates using size-based filtering.
  3. Evaluation (Optional) - Compare predicted coordinates against ground truth annotations.
Parallelism and Resource Utilization

Octopi parallelizes inference workloads at the run level, automatically adapting to the available compute resources.

Segmentation (octopi segment)

  • Uses GPU-based parallelism
  • On a system with N GPUs, up to N runs are segmented concurrently
  • Each worker processes one tomogram at a time using a single GPU
  • Parallelism scales from a single workstation to multi-GPU HPC nodes

Localization (octopi localize)

  • Uses CPU-based parallelism
  • Multiple tomograms are localized concurrently across available CPU cores
  • No GPUs are required for localization

On shared HPC systems, the degree of parallelism is determined by the number of GPUs (for segmentation) or CPU cores (for localization) allocated to the job.

Segmentation

Generate segmentation prediction masks for tomograms using your trained model.

octopi segment \
    --config config.json \
    --model-config best_model_config.yaml \
    --model-weights best_model.pth \
    --voxel-size 10 --tomo-alg wbp \
    --seg-info predict,unet,1
octopi segment -h
Parameter Description Default Notes
--config Path to the CoPick configuration file. – Required
--voxel-size Voxel size (Γ…) of tomograms used for inference. 10 Must match training
--tomo-alg Tomogram reconstruction algorithm used for prediction. wbp Example: denoised
Parameter Description Notes
--model-config Model configuration file(s). Required; comma-separated for ensembles
--model-weights Model weight file(s). Must match --model-config order
Parameter Description Default Notes
--seg-info Output segmentation identifier (name,user_id,session_id). predict,octopi,1 Used to organize results
--tomo-batch-size Number of tomograms processed concurrently. 1 One per GPU worker
--run-ids Specific run IDs to segment. All runs Example: run1,run2

Model Ensembles

octopi segment supports model ensembles by providing multiple model configurations and weights as comma-separated lists.

octopi segment \
    --config config.json \
    --model-config model1.yaml,model2.yaml \
    --model-weights model1.pth,model2.pth \
    --seg-info ensemble,octopi,1

Localization

Convert segmentation masks into 3D particle coordinates using peak detection.

octopi localize \
    --config config.json \
    --seg-info predict,unet,1 \
    --pick-session-id 1 --pick-user-id octopi

The localization algorithm uses particle size information from your copick configuration to filter predictions. For each protein type, Octopi reads the expected particle radius from the copick config file. Predicted candidates smaller than radius * radius_min_scale or larger than radius * radius_max_scale are discarded as noise.

octopi localize -h
Parameter Description Default Notes
--config Path to the CoPick configuration file. – Required
--method Localization algorithm to use. watershed Options: watershed, com
--seg-info Segmentation input identifier (name,user_id,session_id). predict,octopi,1 Must match segmentation output
--voxel-size Voxel size (Γ…) for localization. 10 Must match segmentation
--runIDs Specific run IDs to localize. All runs Example: run1,run2
Parameter Description Default Notes
--radius-min-scale Minimum particle radius scale factor. 0.5 Relative to config radius
--radius-max-scale Maximum particle radius scale factor. 1.0 Relative to config radius
--filter-size Filter size for peak detection (watershed). 10 Ignored for com
--pick-objects Specific objects to localize. All objects Example: ribosome,apoferritin
--n-procs Number of CPU processes for parallelization. 8 Defaults to min(cores, runs)
Parameter Description Default Notes
--pick-session-id Session ID for particle picks. 1 Used for result grouping
--pick-user-id User ID for particle picks. octopi Used for result grouping

Context-Aware Particle Extraction

This optional post-processing step splits an existing set of particle picks into two groups:

  • Membrane-close picks: particles within a configurable distance threshold of a membrane/organelle segmentation.
  • Membrane-far picks: particles outside that threshold.

For membrane-close particles, we can also align orientations so that each particle’s rotation is consistent with the local membrane normal (estimated from the vector between the particle and the closest organelle center).

What this is useful for
  • Separate membrane-associated particles from cytosolic/other particles for downstream analysis.
  • Generate a membrane-consistent orientation initialization for subtomogram averaging.
  • Keep the original picks intact while writing new split picks into new user_id / session_id slots.

This workflow requires two existing data products inside the same CoPick run:

  1. Picks (picks_info = (object_name, user_id, session_id)):
    • the particle coordinates (and optionally orientations) you want to split.
  2. Segmentation (seg_info = (seg_name, user_id, session_id)):
    • a membrane/organelle segmentation used to compute proximity.

You also provide:

  • distance_threshold (in voxels, since distances are computed in the segmentation grid before scaling)
  • voxel_size (Γ…) for writing coordinates back in physical units

How proximity is computed

For each pick coordinate, we compute the closest voxel in the segmentation mask and measure the Euclidean distance. A pick is considered membrane-close if:

min_distance <= distance_to_seg <= distance_threshold

All other points are considered membrane-far.

The function writes two new pick sets back into the CoPick project:

  • Close β†’ (save_user_id, save_session_id)
  • Far β†’ (save_user_id, save_session_id + 1)

Example Output

  1. Membrane-close picks are written to:

    • object_name = picks_info[0]
    • user_id = save_user_id
    • session_id = save_session_id

  2. Membrane-far picks are written to a new session ID:

    • object_name = picks_info[0]
    • user_id = save_user_id
    • session_id = int(save_session_id) + 1

If your original picks were: - (ribosome, data-portal, 0)

and you run extraction with: - save_user_id = octopi - save_session_id = 10

then outputs will be:

  • membrane-close ribosomes β†’ (ribosome, octopi, 10)
  • membrane-far ribosomes β†’ (ribosome, octopi, 11)
How are orienations handled?
  • The routine reads the original pick orientations (4Γ—4 transforms).
  • If all rotations are identity, it assumes the picks are unaligned and will compute an orientation for membrane-close points.
Existing picks may be overwritten

If picks already exist at (object_name, save_user_id, save_session_id) or (object_name, save_user_id, save_session_id+1), the routine will load them and overwrite their contents via from_numpy(...). Use a fresh save_session_id if you want to preserve previous outputs.

Evaluation

Evaluate the particle coordinates against the coordinates that were used to generate the segmentation masks.

octopi evaluate
    --config config.json
    --ground-truth-user-id data-portal --ground-truth-session-id 0
    --predict-user-id octopi --predict-session-id 1
    --save-path evaluate_results
Evaluation Metrics
  • Precision: Fraction of predicted particles that are correct (TP / (TP + FP))
  • Recall: Fraction of true particles that were detected (TP / (TP + FN))
  • F1-Score: Harmonic mean of precision and recall
  • F-beta Score: Weighted harmonic mean emphasizing recall (configurable Ξ² parameter)
  • True Positives (TP): Correctly detected particles within distance threshold
  • False Positives (FP): Predicted particles with no nearby ground truth
  • False Negatives (FN): Ground truth particles with no nearby predictions

Visualization

To visualize your results and validate the quality of segmentations and coordinates, refer to our interactive notebook:

πŸ““ Inference Notebook

With this notebook, we can overlay the segmentation masks or coordiantes the tomograms.

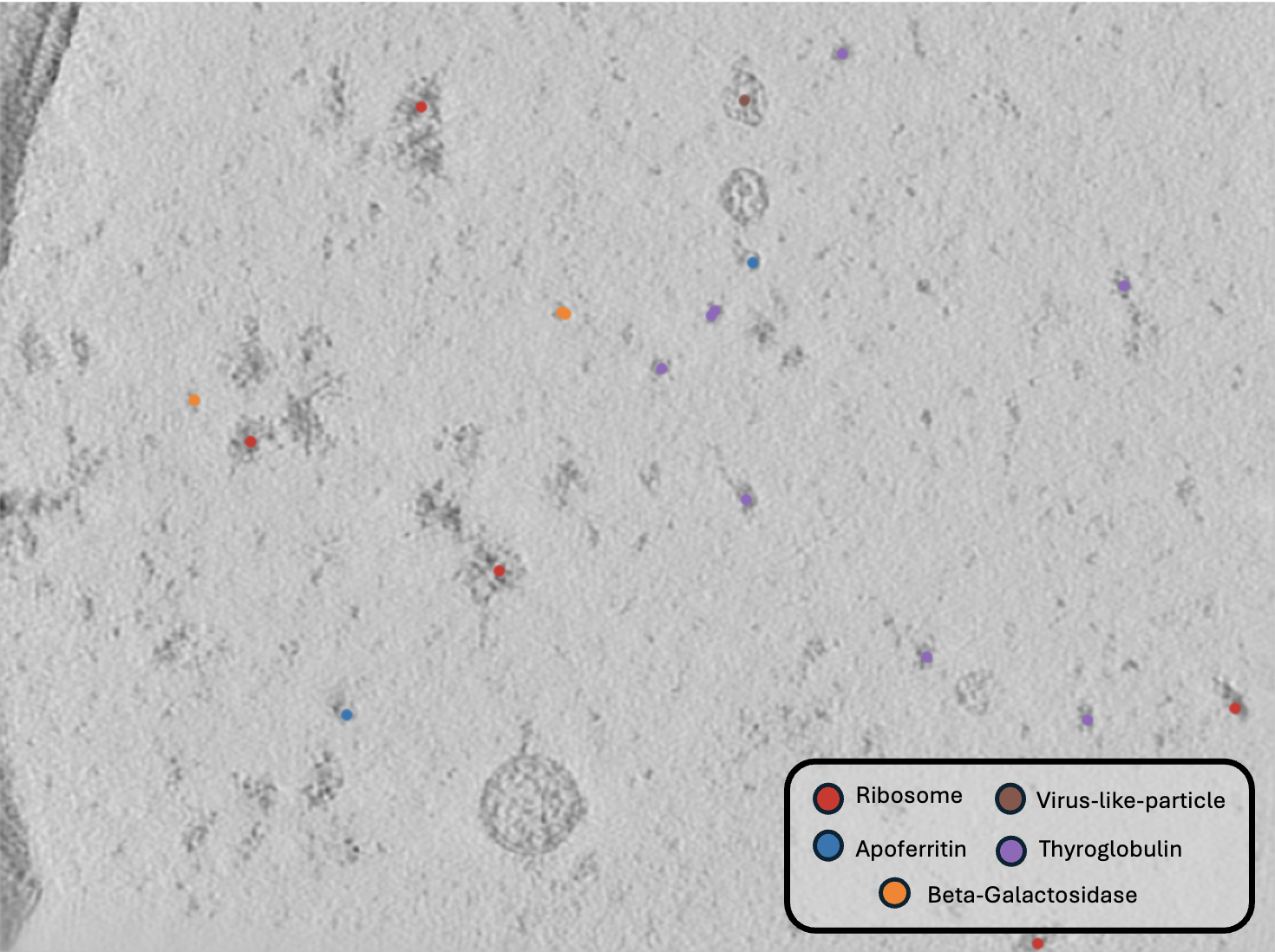

Coordinates Visualization Example of predicted particle coordinates displayed on a holdout tomogram from cryo-ET training dataset. The visualization shows Octopi's localization results overlaid on tomographic data from DatasetID: 10440.

Next Steps

You now have a complete workflow for applying Octopi models to new tomographic data. The inference pipeline transforms your trained models into actionable scientific results through robust segmentation, intelligent localization, and comprehensive evaluation.

For users who want to integrate Octopi into custom analysis pipelines or automate large-scale processing workflows, refer to the API Tutorial to learn how to script new workflows programmatically with OCTOPI's Python interface.
